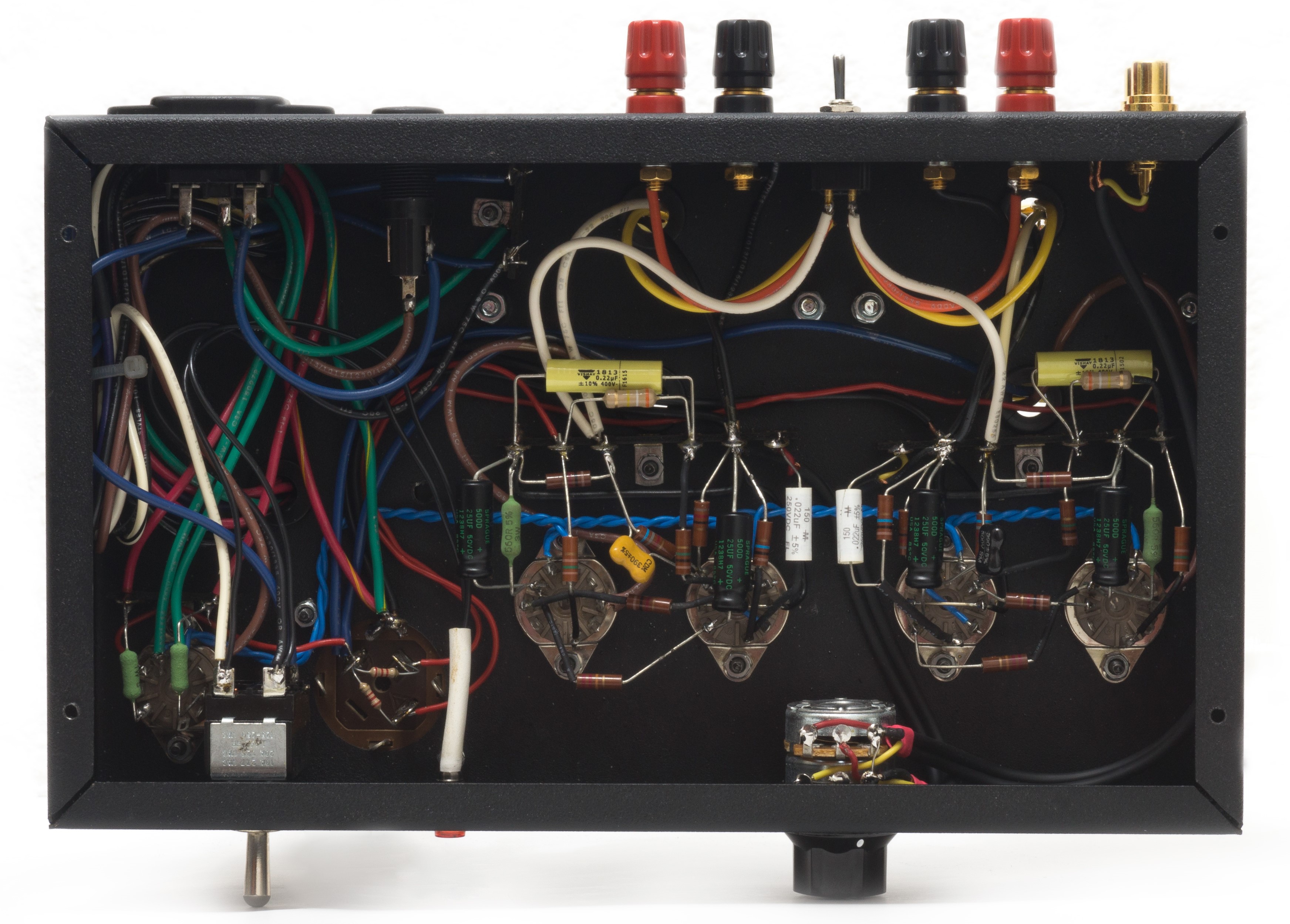

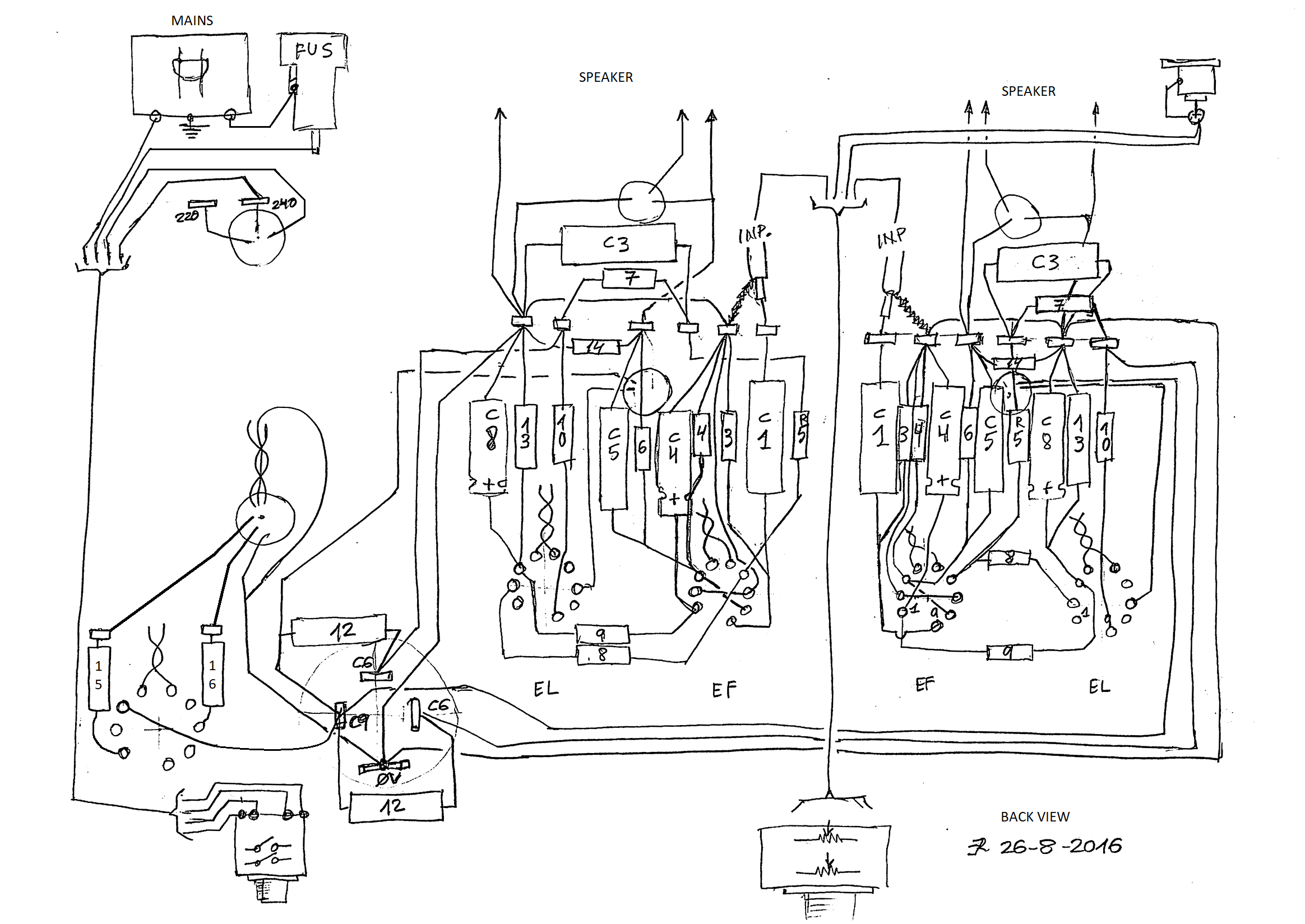

1955 wiring



SIZE Original (3487×2498)



We have used the following electrical wire types:

Insulated hook-up wire, solid, 1 mm² (17 AWG) black
Insulated hook-up wire, solid, 0.5 mm2 (20 AWG) black
Insulated hook-up wire, solid, 0.5 mm2 (20 AWG) blue, for filament
Insulated hook-up wire, solid, 0.5 mm2 (20 AWG) red
Electrical wire debris from Hammond transformers, stranded, 0.32 mm2 (22 AWG)
Audio signal wire 2 x 0,14 mm² single shielding, black
